annotation text plot matlab

annotation('line',x,y) creates a line annotation object that extends from the point defined by x(1),y(1) to the point defined by x(2),y(2), specified in normalized figure units.

In my code, I would like the arrow pointing to the point (x,y) that is drawn by plot(), but annotation interprets the values of x and y as in normalized figure units. So I think that is what causes the problem. How can I specify the correct coordinates to annotation?

annotations

3 Answers 3

First, you need to find the position of the axes in normalized figure units. Fortunately, they're set to 'normalized' by default.

axPos is [xMin,yMin,xExtent,yExtent]

Then, you get the limits, i.e. min and max of the axes.

Finally, you can calculate the annotation x and y from the plot x and y.

Use xAnnotation and yAnnotation as x and y coordinates for your annotation.

1 I claim that xMinMax(2) should actually be (xMinMax(2)-xMinMax(1)) , similarly for yMinMax(2) . – Artelius Sep 12, 2010 at 8:56

Another way to get normalized figure coordinates is to use Data space to figure units conversion (ds2nfu) submission on FileExchange.

I had some trouble understanding the normalized coordinates, until I realized that the coordinates (0,0) and (1,1) are respectively the lower left corner and upper right corner of the COMPLETE plot window, not just of the plot. The below snippet and the screenshot might help others who have been wondering where the 0 starts and the 1 ends.

Plot with arrow coordinates (0,0) and (1,1)

Your Answer

Required, but never shown

By clicking “Post Your Answer”, you agree to our terms of service and acknowledge that you have read and understand our privacy policy and code of conduct .

Not the answer you're looking for? Browse other questions tagged matlab plot annotations or ask your own question .

Hot Network Questions

Your privacy

By clicking “Accept all cookies”, you agree Stack Exchange can store cookies on your device and disclose information in accordance with our Cookie Policy .

Help Center Help Center

Create annotations

Description

annotation( lineType , x , y ) creates a line or arrow annotation extending between two points in the current figure. Specify lineType as 'line' , 'arrow' , 'doublearrow' , or 'textarrow' . Specify x and y as two-element vectors of the form [x_begin x_end] and [y_begin y_end] , respectively.

annotation( lineType ) creates the annotation in the default position between the points (0.3,0.3) and (0.4,0.4) .

annotation( shapeType , dim ) creates a rectangle, ellipse, or text box annotation with a particular size and location in the current figure. Specify shapeType as 'rectangle' , 'ellipse' , or 'textbox' . Specify dim as a four-element vector of the form [x y w h] . The x and y elements determine the position and the w and h elements determine the size.

annotation( shapeType ) creates the annotation in the default position so that the lower left corner is at (0.3,0.3) and the width and height are both 0.1 .

annotation( ___ , Name,Value ) creates the annotation and specifies properties as name-value pair arguments. Different types of annotations support different properties. You can specify properties with any of the input argument combinations in the previous syntaxes.

annotation( container , ___ ) creates the annotation in the figure, uipanel, or uitab specified by container , instead of in the current figure.

an = annotation( ___ ) returns the annotation object. The type of object returned depends on first input argument. Use an to modify properties of the object after it is created. You can specify an output argument with any of the previous syntaxes.

collapse all

Create Text Arrow Annotation

Create a simple line plot and add a text arrow to the figure. Specify the text arrow location in normalized figure coordinates, starting at the point (0.3,0.6) and ending at (0.5,0.5) . Specify the text description by setting the String property.

Figure contains an axes object. The axes object contains an object of type line.

Create Text Box Annotation

Create a simple line plot and add a text box annotation to the figure. Specify the text description by setting the String property. Force the box to fit tightly around the text by setting the FitBoxToText property to 'on' .

Create a text box annotation without setting the FitBoxToText property. The text box uses the specified width and height and wraps text as needed.

Create Text Box Annotation with Multiline Text

Create a text box annotation with multiline text by setting the String property to a cell array. Each element of the cell array displays on a separate line. Force the box to fit tightly around the text by setting the FitBoxToText property to 'on' .

Create Rectangle Annotation

Create a stem plot and add a rectangle annotation to the figure. Change the color of the rectangle outline by specifying the Color property.

Figure contains an axes object. The axes object contains an object of type stem.

Add a second rectangle annotation to the figure. Specify the fill color by setting the FaceColor property. Add transparency by setting the FaceAlpha property to a value between 0 (completely transparent) and 1 (completely opaque).

Create Ellipse Annotation

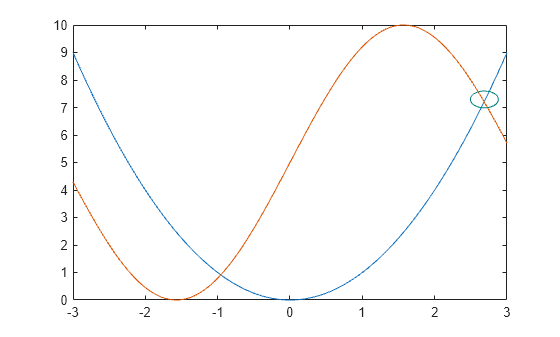

Create a simple line plot and add an ellipse annotation to the figure. Specify dim as the size and location of the smallest rectangle that encloses the ellipse.

Draw a red rectangle using the same dimensions to show how the ellipse fills the rectangular area.

Combine Two Types of Annotations

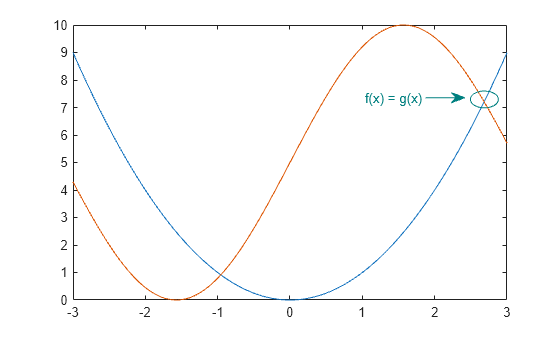

Create a simple line plot. Then, add a bent arrow to the graph by combining a line and an arrow annotation.

Modify Annotation After Creation

Add a text arrow to a figure and return the annotation text arrow object, a .

Modify properties of the annotation text arrow using a . For example, change the color to red and the font size to 14 points.

See the annotation property pages for a list of properties for each type of annotation.

Input Arguments

Linetype — type of line annotation 'line' | 'arrow' | 'doublearrow' | 'textarrow'.

Type of line annotation, specified as one of these values.

shapeType — Type of shape annotation 'rectangle' | 'ellipse' | 'textbox'

Type of shape annotation, specified as one of these values.

x — Beginning and ending x -coordinates two-element vector of the form [x_begin x_end]

Beginning and ending x -coordinates, specified as a two-element vector of the form [x_begin x_end] . Together the x and y input arguments determine the endpoints of the line, arrow, double arrow, or text arrow annotation. The annotation extends from the point ( x_begin , y_begin ) to ( x_end , y_end ).

By default, the units are normalized to the figure. The lower left corner of the figure maps to (0,0) and the upper right corner maps to (1,1) . To change the units, use the Units property.

Example: x = [.3 .5]

y — Beginning and ending y -coordinates two-element vector of the form [y_begin y_end]

Beginning and ending y -coordinates, specified as a two-element vector of the form [y_begin y_end] . Together the x and y input arguments determine the endpoints of the line, arrow, double arrow, or text arrow annotation. The annotation extends from the point ( x_begin , y_begin ) to ( x_end , y_end ).

Example: y = [.3 .5]

dim — Size and location four-element vector of the form [x y w h]

Size and location, specified as a four-element vector of the form [x y w h] . The first two elements specify the coordinates of the lower left corner of the text box, rectangle, or ellipse with respect to the lower left corner of the figure. The second two elements specify the width and height of the annotation, respectively.

If you are creating an ellipse, then dim is the size and location of the smallest rectangle that encloses the ellipse.

By default, the units are normalized to the figure. The lower left corner of the figure maps to (0,0) and the upper right corner maps to (1,1) . To change the units, use the Units property

Example: dim = [.3 .4 .5 .6]

container — Target for annotation figure object | uipanel object | uitab object

Target for annotation, specified as a figure, uipanel, or uitab object. For example, to add an annotation to a specific figure, specify the figure object as the first input argument to the function. f = figure; annotation(f, 'line' ,[.1 .2],[.2 .3])

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN , where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: annotation('rectangle',[.5 .5 .1 .1],'EdgeColor','r') creates a rectangle annotation with a red outline.

Each type of annotation object supports a different set of properties. For a full list of properties and descriptions for each type, see the associated property page.

Line Properties

Arrow Properties

DoubleEndArrow Properties

Output Arguments

An — annotation object scalar.

Annotation object, returned as a scalar. The type of annotation object returned depends on the first input argument.

Compatibility Considerations

Starting in R2014b, annotations cannot cross uipanel boundaries. Instead, they clip at the boundaries. Previous versions of MATLAB ® allow annotations to extend into (or out of) the boundaries. To display an annotation within a specific figure, uipanel, or uitab, use the container input argument.

Version History

Introduced before R2006a

Abrir ejemplo

Tiene una versión modificada de este ejemplo. ¿Desea abrir este ejemplo con sus modificaciones?

Comando de MATLAB

Ha hecho clic en un enlace que corresponde a este comando de MATLAB:

Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

Asia Pacific

Contact your local office

MATLAB Figure Reference: layout.annotations

Sets the horizontal alignment of the `text` within the box. Has an effect only if `text` spans two or more lines (i.e. `text` contains one or more HTML tags) or if an explicit width is set to override the text width.

Sets the color of the annotation arrow.

Sets the end annotation arrow head style.

Sets the annotation arrow head position.

Sets the size of the end annotation arrow head, relative to `arrowwidth`. A value of 1 (default) gives a head about 3x as wide as the line.

Sets the width (in px) of annotation arrow line.

Sets the x component of the arrow tail about the arrow head. If `axref` is `pixel`, a positive (negative) component corresponds to an arrow pointing from right to left (left to right). If `axref` is not `pixel` and is exactly the same as `xref`, this is an absolute value on that axis, like `x`, specified in the same coordinates as `xref`.

Indicates in what coordinates the tail of the annotation (ax,ay) is specified. If set to a x axis id (e.g. 'x' or 'x2'), the `x` position refers to a x coordinate. If set to 'paper', the `x` position refers to the distance from the left of the plotting area in normalized coordinates where '0' ('1') corresponds to the left (right). If set to a x axis ID followed by 'domain' (separated by a space), the position behaves like for 'paper', but refers to the distance in fractions of the domain length from the left of the domain of that axis: e.g., 'x2 domain' refers to the domain of the second x axis and a x position of 0.5 refers to the point between the left and the right of the domain of the second x axis. In order for absolute positioning of the arrow to work, 'axref' must be exactly the same as 'xref', otherwise 'axref' will revert to 'pixel' (explained next). For relative positioning, 'axref' can be set to 'pixel', in which case the 'ax' value is specified in pixels relative to 'x'. Absolute positioning is useful for trendline annotations which should continue to indicate the correct trend when zoomed. Relative positioning is useful for specifying the text offset for an annotated point.

Sets the y component of the arrow tail about the arrow head. If `ayref` is `pixel`, a positive (negative) component corresponds to an arrow pointing from bottom to top (top to bottom). If `ayref` is not `pixel` and is exactly the same as `yref`, this is an absolute value on that axis, like `y`, specified in the same coordinates as `yref`.

Indicates in what coordinates the tail of the annotation (ax,ay) is specified. If set to a y axis id (e.g. 'y' or 'y2'), the `y` position refers to a y coordinate. If set to 'paper', the `y` position refers to the distance from the bottom of the plotting area in normalized coordinates where '0' ('1') corresponds to the bottom (top). If set to a y axis ID followed by 'domain' (separated by a space), the position behaves like for 'paper', but refers to the distance in fractions of the domain length from the bottom of the domain of that axis: e.g., 'y2 domain' refers to the domain of the second y axis and a y position of 0.5 refers to the point between the bottom and the top of the domain of the second y axis. In order for absolute positioning of the arrow to work, 'ayref' must be exactly the same as 'yref', otherwise 'ayref' will revert to 'pixel' (explained next). For relative positioning, 'ayref' can be set to 'pixel', in which case the 'ay' value is specified in pixels relative to 'y'. Absolute positioning is useful for trendline annotations which should continue to indicate the correct trend when zoomed. Relative positioning is useful for specifying the text offset for an annotated point.

Sets the background color of the annotation.

Sets the color of the border enclosing the annotation `text`.

Sets the padding (in px) between the `text` and the enclosing border.

Sets the width (in px) of the border enclosing the annotation `text`.

Determines whether the annotation text box captures mouse move and click events, or allows those events to pass through to data points in the plot that may be behind the annotation. By default `captureevents` is 'false' unless `hovertext` is provided. If you use the event `plotly_clickannotation` without `hovertext` you must explicitly enable `captureevents`.

Makes this annotation respond to clicks on the plot. If you click a data point that exactly matches the `x` and `y` values of this annotation, and it is hidden (visible: false), it will appear. In 'onoff' mode, you must click the same point again to make it disappear, so if you click multiple points, you can show multiple annotations. In 'onout' mode, a click anywhere else in the plot (on another data point or not) will hide this annotation. If you need to show/hide this annotation in response to different `x` or `y` values, you can set `xclick` and/or `yclick`. This is useful for example to label the side of a bar. To label markers though, `standoff` is preferred over `xclick` and `yclick`.

Sets the annotation text font.

color Parent: layout.annotations[].font Type: color

HTML font family - the typeface that will be applied by the web browser. The web browser will only be able to apply a font if it is available on the system which it operates. Provide multiple font families, separated by commas, to indicate the preference in which to apply fonts if they aren't available on the system. The Chart Studio Cloud (at https://chart-studio.plotly.com or on-premise) generates images on a server, where only a select number of fonts are installed and supported. These include 'Arial', 'Balto', 'Courier New', 'Droid Sans',, 'Droid Serif', 'Droid Sans Mono', 'Gravitas One', 'Old Standard TT', 'Open Sans', 'Overpass', 'PT Sans Narrow', 'Raleway', 'Times New Roman'.

size Parent: layout.annotations[].font Type: number greater than or equal to 1

Sets an explicit height for the text box. null (default) lets the text set the box height. Taller text will be clipped.

Sets the background color of the hover label. By default uses the annotation's `bgcolor` made opaque, or white if it was transparent.

Sets the border color of the hover label. By default uses either dark grey or white, for maximum contrast with `hoverlabel.bgcolor`.

Sets the hover label text font. By default uses the global hover font and size, with color from `hoverlabel.bordercolor`.

Sets text to appear when hovering over this annotation. If omitted or blank, no hover label will appear.

When used in a template, named items are created in the output figure in addition to any items the figure already has in this array. You can modify these items in the output figure by making your own item with `templateitemname` matching this `name` alongside your modifications (including `visible: false` or `enabled: false` to hide it). Has no effect outside of a template.

Sets the opacity of the annotation (text + arrow).

Determines whether or not the annotation is drawn with an arrow. If 'true', `text` is placed near the arrow's tail. If 'false', `text` lines up with the `x` and `y` provided.

Sets a distance, in pixels, to move the end arrowhead away from the position it is pointing at, for example to point at the edge of a marker independent of zoom. Note that this shortens the arrow from the `ax` / `ay` vector, in contrast to `xshift` / `yshift` which moves everything by this amount.

Sets the start annotation arrow head style.

Sets the size of the start annotation arrow head, relative to `arrowwidth`. A value of 1 (default) gives a head about 3x as wide as the line.

Sets a distance, in pixels, to move the start arrowhead away from the position it is pointing at, for example to point at the edge of a marker independent of zoom. Note that this shortens the arrow from the `ax` / `ay` vector, in contrast to `xshift` / `yshift` which moves everything by this amount.

Used to refer to a named item in this array in the template. Named items from the template will be created even without a matching item in the input figure, but you can modify one by making an item with `templateitemname` matching its `name`, alongside your modifications (including `visible: false` or `enabled: false` to hide it). If there is no template or no matching item, this item will be hidden unless you explicitly show it with `visible: true`.

Sets the text associated with this annotation. Plotly uses a subset of HTML tags to do things like newline ( ), bold (), italics (), hyperlinks (<a href='...'></a>). Tags , , are also supported.

Sets the angle at which the `text` is drawn with respect to the horizontal.

Sets the vertical alignment of the `text` within the box. Has an effect only if an explicit height is set to override the text height.

Determines whether or not this annotation is visible.

Sets an explicit width for the text box. null (default) lets the text set the box width. Wider text will be clipped. There is no automatic wrapping; use to start a new line.

Sets the annotation's x position. If the axis `type` is 'log', then you must take the log of your desired range. If the axis `type` is 'date', it should be date strings, like date data, though Date objects and unix milliseconds will be accepted and converted to strings. If the axis `type` is 'category', it should be numbers, using the scale where each category is assigned a serial number from zero in the order it appears.

Sets the text box's horizontal position anchor This anchor binds the `x` position to the 'left', 'center' or 'right' of the annotation. For example, if `x` is set to 1, `xref` to 'paper' and `xanchor` to 'right' then the right-most portion of the annotation lines up with the right-most edge of the plotting area. If 'auto', the anchor is equivalent to 'center' for data-referenced annotations or if there is an arrow, whereas for paper-referenced with no arrow, the anchor picked corresponds to the closest side.

Toggle this annotation when clicking a data point whose `x` value is `xclick` rather than the annotation's `x` value.

Sets the annotation's x coordinate axis. If set to a x axis id (e.g. 'x' or 'x2'), the `x` position refers to a x coordinate. If set to 'paper', the `x` position refers to the distance from the left of the plotting area in normalized coordinates where '0' ('1') corresponds to the left (right). If set to a x axis ID followed by 'domain' (separated by a space), the position behaves like for 'paper', but refers to the distance in fractions of the domain length from the left of the domain of that axis: e.g., 'x2 domain' refers to the domain of the second x axis and a x position of 0.5 refers to the point between the left and the right of the domain of the second x axis.

Shifts the position of the whole annotation and arrow to the right (positive) or left (negative) by this many pixels.

Sets the annotation's y position. If the axis `type` is 'log', then you must take the log of your desired range. If the axis `type` is 'date', it should be date strings, like date data, though Date objects and unix milliseconds will be accepted and converted to strings. If the axis `type` is 'category', it should be numbers, using the scale where each category is assigned a serial number from zero in the order it appears.

Sets the text box's vertical position anchor This anchor binds the `y` position to the 'top', 'middle' or 'bottom' of the annotation. For example, if `y` is set to 1, `yref` to 'paper' and `yanchor` to 'top' then the top-most portion of the annotation lines up with the top-most edge of the plotting area. If 'auto', the anchor is equivalent to 'middle' for data-referenced annotations or if there is an arrow, whereas for paper-referenced with no arrow, the anchor picked corresponds to the closest side.

Toggle this annotation when clicking a data point whose `y` value is `yclick` rather than the annotation's `y` value.

Sets the annotation's y coordinate axis. If set to a y axis id (e.g. 'y' or 'y2'), the `y` position refers to a y coordinate. If set to 'paper', the `y` position refers to the distance from the bottom of the plotting area in normalized coordinates where '0' ('1') corresponds to the bottom (top). If set to a y axis ID followed by 'domain' (separated by a space), the position behaves like for 'paper', but refers to the distance in fractions of the domain length from the bottom of the domain of that axis: e.g., 'y2 domain' refers to the domain of the second y axis and a y position of 0.5 refers to the point between the bottom and the top of the domain of the second y axis.

Shifts the position of the whole annotation and arrow up (positive) or down (negative) by this many pixels.
